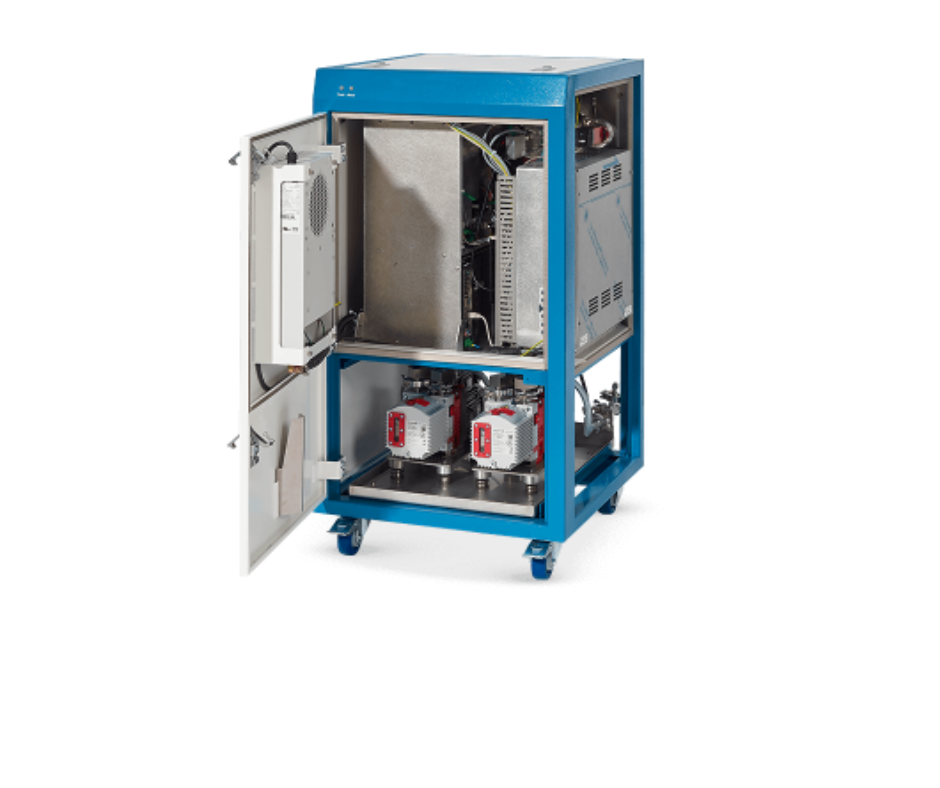

GAM 3000

Process gas quadrupole mass spectrometer for fast automated online gas analysis in industry and research.

PRODUCT HIGHLIGHTS

Customizable configurations to the specific analytical needs of the application

Process gas valve battery with response time t90 < 300 ms

IPI QMS software connected with the PLC (process control systems) of the user; it features amongst others specially developed programs to monitore and control the converter process during steel production

Completely revised electronics and control system with auto start after power-off

Significantly more compact than the previous models (25% lighter and smaller) associated with lower maintenance requirements

DETAILS

Patented hyperbolic quadrupole analyzer with pre-filter, digital control of the HF-generator and automated resonance tuning

Standard inlet system for the measurement of constant concentrations of gas mixtures allows to connect six calibration and two process gas lines with 6 mm or ¼ inch plugs.

Analysis of reactive, corrosive or condensing gas components possible Optional: heatable gas inlet

TECHNICAL

Mass range
1 - 300, 1 - 512 amu

PC
Windows® 7 or higher

Software
IPI-QMS System and Application Software

Data communication
Ethernet, PROFIBUS, PROFINET, OPC others on request

Electrical connection
Main voltage 115/230 V, 50/60 Hz others on request

Protection class
IP 54

Ambient conditions
Temperature < 35°C; rel. humidity < 75%

Dimensions
approx. 600 x 800 x 1105 mm (b x d x h)

Weight
approx. 190 kg

FIELDS OF APPLICATION

Chemical Industry

Metallurgy

Online Process Analysis

Quality Control
